Cold Box Core Shooter



We are Manufacturer, Supplier, Exporter of Cold Box Core Shooter Machine, Two station Cold Box Core Shooter GCB02, GCB03, GCB05, GCB06. Our setup is situated in Kolhapur, Maharashtra, India.

Ganesh Amine Gas Generation Unit - GCB 01

Ganesh Amine Gas Generation Unit - GCB 01

Ganesh has come up with cost effective solution for foundry cold box core making Process. This is our entry level Product for cold box.

Salient Features :

  • Flexible core box sizes
  • Flexible parting type
  • Suitable for batch type production
  • Cores up to 8 kg can be easily cured
  • Amine gas purging controlled by timers
  • Height adjustable
  • Value for money product

Two Station Cold Box Core Shooter - GCB 02

Ganesh Amine Gas Generation Unit - GCB 02

This machine is ideal for low to medium batch size Flexibility in core box size or parting type.

Salient Features :

  • Suitable for batch type production
  • Cores up to 8 to 10 kg can be easily produced
  • Amine gas purging controlled by timers
  • Two Stations - 1. Sand Shooting, 2. amine Purging
  • Complete automation of the machine is possible

Ganesh Cold Box Core Shooter - GCB 03

Ganesh Amine Gas Generation Unit - GCB 02

This machine is ideal for low to medium batch size Flexibility in core box size or parting type.

Salient Features :

  • Automatic machine
  • Mounting plate size : 300x200x100
  • Core weight : Max.5 kg
  • Parting type : Vertical
  • Pneumatic control
  • Along with amine gas generation system
  • PLC control
  • Cycle time around 1 min

Ganesh Cold Box Core Shooter : GCB 05

Ganesh Amine Gas Generation Unit - GCB 02

Salient Features :

  • Parting type : universal
  • Core box size : Vertical parting : 600*300, Horizontal parting : 400*400
  • Core size : 10kg To 20kg
  • Complete hydrualic system
  • This machine can be supplied with core carrier
  • Complete enclosure unit for machine

Ganesh Cold Box Core Shooter - GCB 06

Ganesh Amine Gas Generation Unit - GCB 02

Salient Features :

  • Parting type : universal
  • Core box size : Vertical parting : 400*500, Horizontal parting : 650*500
  • Core size : 20kg and above.
  • Complete hydrualic system
  • This machine can be supplied with core carrier

Ganesh Sand Supply System For Cold Box

Ganesh Amine Gas Generation Unit - GCB 02

Complete Automatic Mixer : 100, 200, 300 kg capacity.

Salient Features :

  • Automatic addition of additives,
  • Sand weighing and batching system,
  • SCADA system
  • Automatic track line System
  • Direct transfer from truck to machine hopper No manpower required.



Supporting Machines

Sand hopper, bucket elevator
To reduce the core rejection and binder consumption Ganesh quality Machines Pvt Ltd has come up with a new product.Our fully automatic core sand mixing systems allows our customers to have perfect control over the binders used. Accurately weighed Sand and binders reduces rejection significantly. We can design complete turnkey systems right from sand emptying from truck to binder transfer and dosing. Our rigid systems allows our customer to have perfect mixing systems without any operator interference. Ganesh quality machines can support our customers in designing core shop layout and sand transfer trolley and tracklines

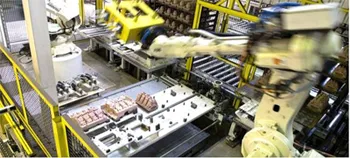

Core Post Processing Solutions

Ganesh Amine Gas Generation Unit - GCB 02

Automatic Deburring, Gluing, Handling, Transportation

Salient Features :

  • Scada system for Core shops
  • Monitoring Consumables, Inline Costing, Data Logging
  • Low Cost Automation Solutions

Cold Box Core Shooter – VCB 5

Cold Box Core Shooter – VCB 5



  • Semi Automatic Machine
  • Mounting plate size: 300x200x100
  • Core weight:Max.5 kg
  • Parting type: Vertical
  • Pneumatic Control
  • Proven amine gas generation system
  • PLC Control
  • Cycle Time Around 1 min.

Cold Box Core Shooter – GUCB 15

Cold Box Core Shooter – VCB 5



  • Automatic machine
  • Mounting plate size: 500x400
  • Core weight: Max.15 kg
  • Parting type: Universal
  • Pneumatic / Hydropneuamtic
  • Along with amine gas generation system
  • PLC Control

Cold Box Core Shooter – GCB 25

Cold Box Core Shooter – GCB25



  • Parting type : Universal parting
  • Plate sizes : 400x700
  • Maximum Core weight : 25kg
  • Advantage : Fast operation, Robust construction, Low amine consumption.
  • Option : Core unloaders, auto blow plate & corebox clamping, suction blowers & enclosures

Cold Box Core Shooter – GHCB 40

Cold Box Core Shooter – GHCB40



  • Parting type : Horizontal
  • Plate sizes : 500x600
  • Maximum Core weight : 40 kg
  • Optional Accessories : Core unloders,core extractors, auto blow plate & corebox clamping, suction blowers & enclosures

Cold Box Core Shooter – GUCB 50

Cold Box Core Shooter – GHCB40



  • Parting type : Universal
  • Core Box Size :
    Vertical Parting :400*500
    Horizontal Parting :650*500
  • Core Size : 20kg and above.
  • Optional Accessories :
    • Core Unloders, Core Extractors,
    • Auto Blow Plate & Corebox Clamping,
    • Suction Blowers & Enclosures

No Bake Core Shooter- GNB 40

No Bake Core Shooter- GNB 40



  • Parting Types : Vertical
  • Plate sizes : 550*600
  • Maximum Core weight : 40 kg
  • Optional Accessories :
    • Core Unloders, Core Extractors,
    • Auto Blow Plate & Corebox Clamping,
    • Suction Blowers & Enclosures

Automatic Sand Mixing System For Coldbox System

No Bake Core Shooter- GNB 40
  • Complete Turn key project
  • Automatic Mixer : 100,200,300,500kg
  • Special Features :
    • Automatic addition of additives
    • Sand Weighing and batching system
    • SCADA system
  • Automatic Track line System
  • Direct transfer From truck to machine hopper
  • No manpower required.
  • Completely customised as per your layout
